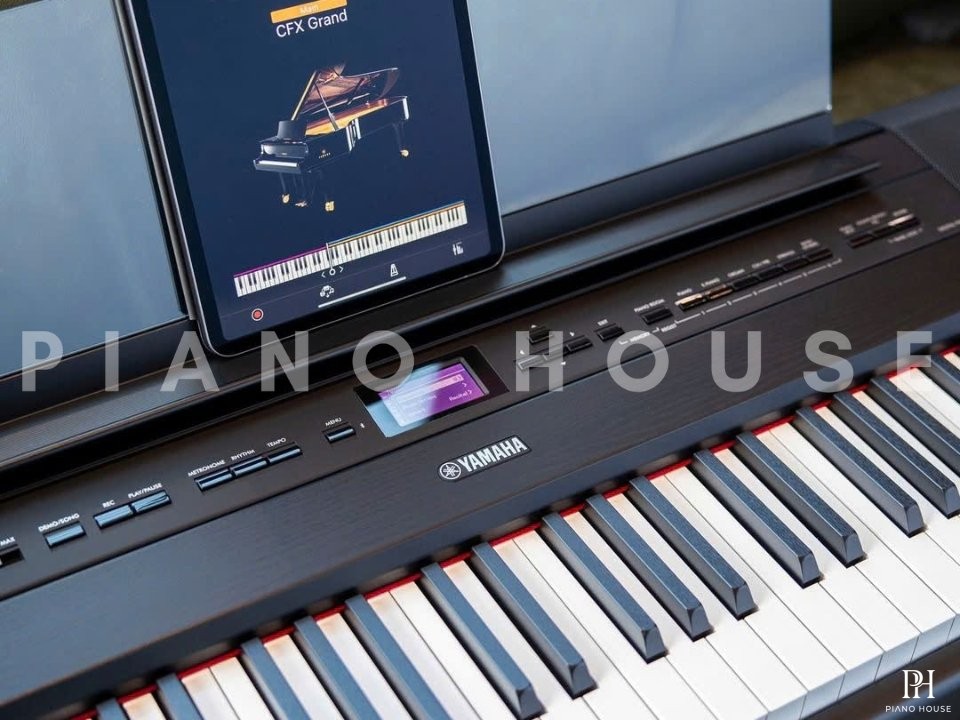

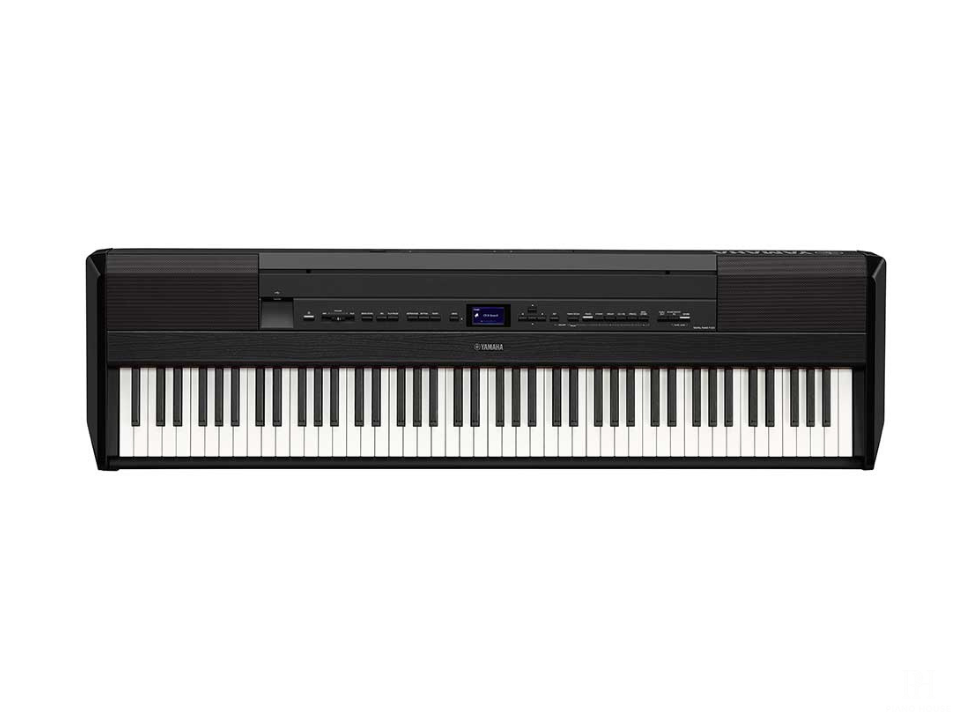

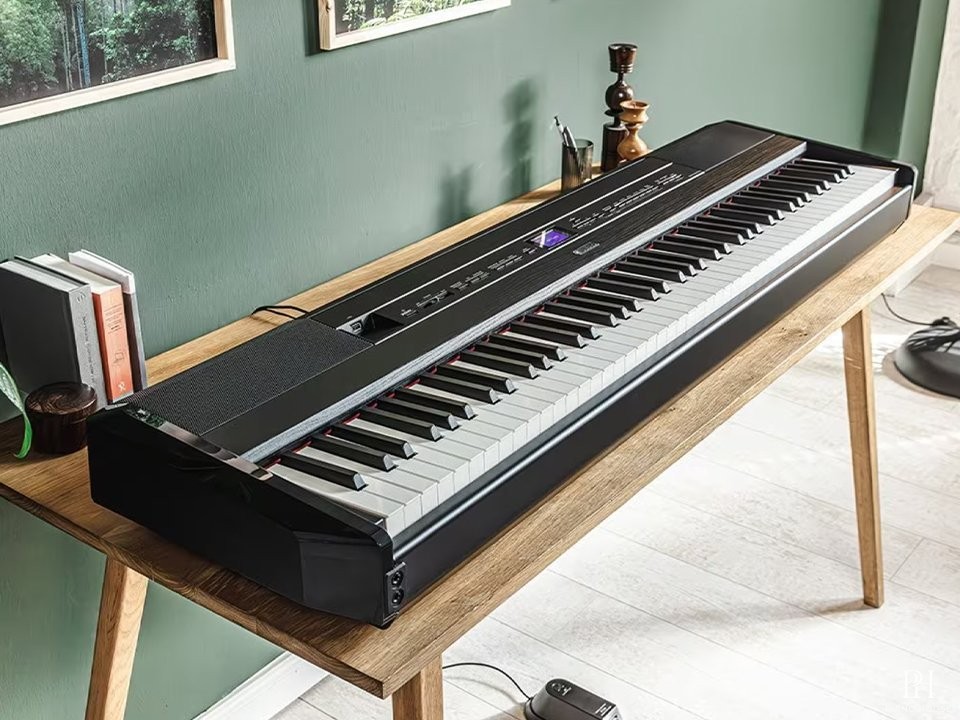

YAMAHA P-525 BK

P-525

Size/Weight

Dimensions

Width

1,336 mm [52-5/8"]

Height

145 mm [5-11/16"] (with music rest: 328 mm [12-15/16"])

Depth

376 mm [14-13/16"] (with music rest: 403 mm [15-7/8"])

Weight

Weight

22.0 kg [48 lb, 8 oz]

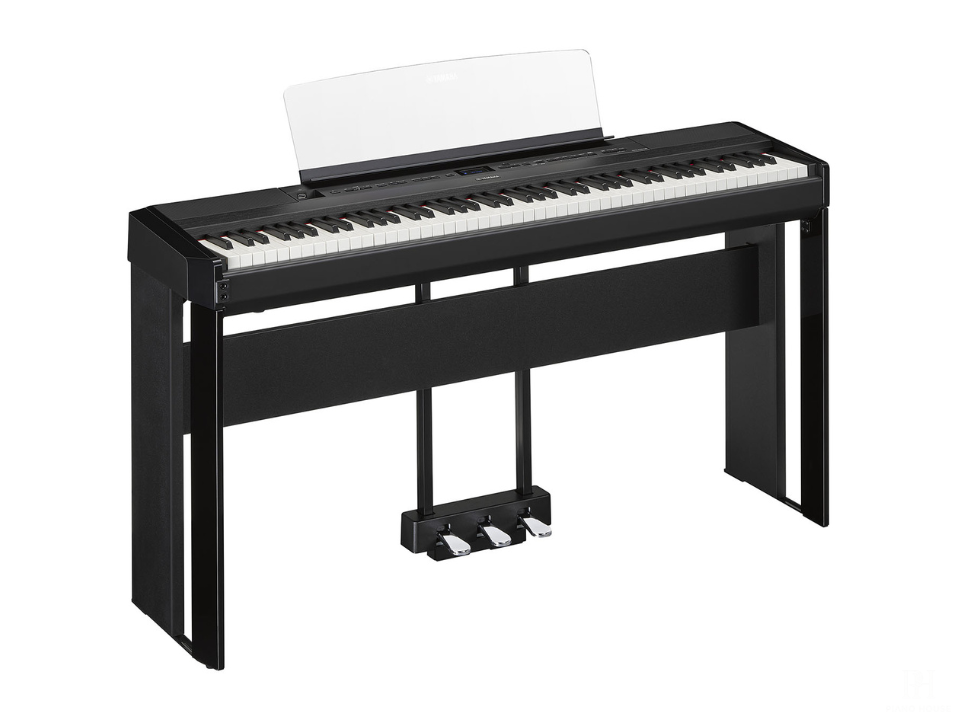

Dimensions (with optional stand)

Width

1,336 mm [52-5/8"]

Height

757 mm [29-13/16"] (with music rest: 939 mm [37-0"])

Depth

377 mm [14-13/16"] (with music rest: 402 mm [15-13/16"])

Dimensions of Packing Box

W x H x D

1,457 mm x 311 mm x 531 mm [57-3/8" x 12-1/4" x 20-7/8"]

Control Interface

Keyboard

Number of Keys

88

Type

GrandTouch-S™ Keyboard: wooden keys (white only), synthetic ebony and ivory key tops, escapement

Touch Sensitivity

Hard2/Hard1/Medium/Soft1/Soft2/Fixed

Pedal

Number of Pedals

3 (when using the pedal unit, LP-1/FC35)

Assignable Functions

Sustain (Switch), Sustain (Continuous), Sostenuto, Soft, Pitch Bend Up, Pitch Bend Down, Rotary Speed, Vibe Rotor, Song Play/Pause

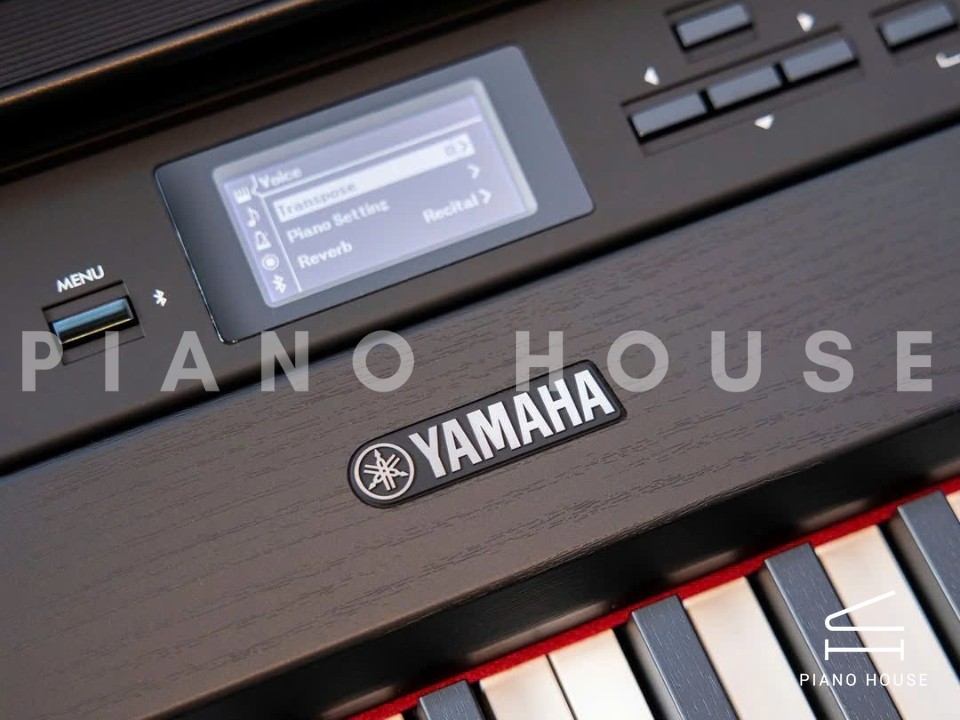

Display

Type

Full Dots LCD

Size

198 x 100 dots

Language

English, Japanese

Panel

Language

English

Voices

Tone Generator

Piano Sound

Yamaha CFX, Bösendorfer Imperial

Binaural Sampling

Yes ("CFX Grand" Voice only)

Virtual Resonance Modeling (VRM)

Yes

Grand Expression Modeling

Yes

Key-off Samples

-

Damper Resonance

-

Polyphony (max.)

256

Preset

Number of Voices

44 Voices + 18 Drum/SFX Kits + 480 XG Voices

Compatibility

XG (GM), GS (for Song playback), GM2 (for Song playback)

Effects

Types

Reverb

7 types

Chorus

3 types

Master EQ

3 Preset + 1 User

Insertion Effect

12 types

Intelligent Acoustic Control (IAC)

Yes

Stereophonic Optimizer

Yes

Sound Boost

3 types

Wall EQ

-

Functions

Dual/Layers

Yes

Split

Yes

Duo

Yes

Songs

Preset

Number of Preset Songs

21 Voice Demo Songs + 50 Classics

MIDI Recording

Number of Songs

250

Number of Tracks

16

Data Capacity

Approx. 500 KB/Song (approx. 22,000 notes)

Audio Recording (USB memory)

Recording Time (max.)

80 minutes/Song

Compatible Data Format

Playback

SMF (Format 0, Format 1), WAV (44.1 kHz sample rate, 16-bit resolution, stereo)

Recording

SMF (Format 0), WAV (44.1 kHz sample rate, 16-bit resolution, stereo)

Functions

Piano Room

Yes

Rhythm

Number of Rhythms

40

Registration Memory

Number of Buttons

6 (x 4 banks)

Overall Controls

Metronome

Yes

Tempo Range

5 - 500

Transpose

-12 - 0 - +12

Tuning

414.8 - 440.0 - 466.8 Hz (approx. 0.2 Hz increments)

Scale Type

7 types

USB Audio Interface

44.1 kHz, 16 bit, stereo

Bluetooth

Audio/MIDI (varies by area)

Storage and Connectivity

Storage

Internal Memory

Total maximum size approx. 1.4 MB

External Drives

USB flash drive

Connectivity

Headphones

Standard stereo phone jack (x 2)

MIDI

IN, OUT

AUX IN

Stereo mini jack

AUX OUT

Standard phone jack (L/L+R, R)

USB TO DEVICE

Type A

USB TO HOST

Type C

DC IN

16 V

Sustain Pedal

Yes (assignable)

Pedal Unit

Yes

Amplifiers and Speakers

Amplifiers

(20 W + 6 W) x 2

Speakers

(Oval (12 cm x 6 cm) + 2.5 cm (dome)) x 2

Power Supply

AC Adaptor

PA-300C (Output: DC 16 V, 2.4 A)

Power Consumption

18 W (when using PA-300C AC adaptor)

Accessories

Included Accessories

Owner’s Manual, Online Member Product Registration, Music rest, Foot pedal (FC3A), Power cord*/AC adaptor* (PA-300C) *Varies by area

Separately Sold Accessories

Headphones (HPH-150, HPH-100, HPH-50), Keyboard stand (L-515), Pedal unit (LP-1, FC35), Foot pedal (FC3A), Footswitches (FC4A, FC5), AC adaptor* (PA-300C), USB wireless LAN adaptor (UD-WL01) *Varies by area
